1. MODEL:TD05H 16G forward

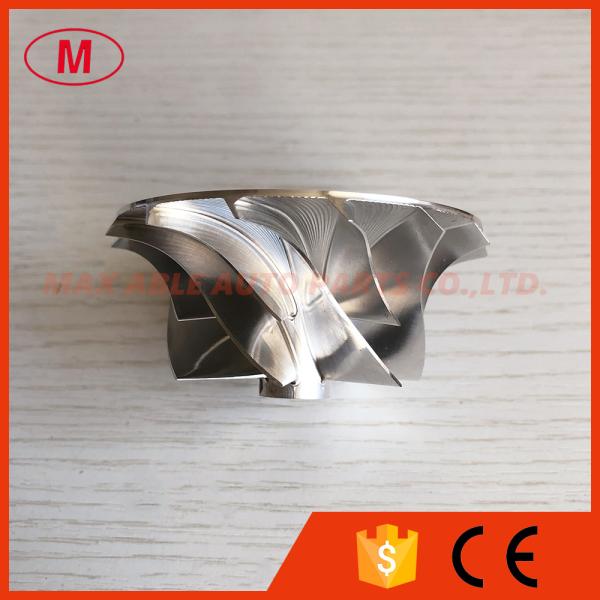

2.TD05H 16G 48.30/68.01mm 7+7 blades 49178-01560 High performance high blade height Turbo Billet/milling/Aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.50mm

inducer:48.30mm

Exducer:68.01mm

Tapered tip exducer:72.18mm

Tip height:4.61mm

Superback:2.90mm

Overall height:35.00mm

bore size :6.50mm

bore type:through

Trailing Angle:55 degree

Cutback:0.0

SP height angle:-6.60

Blade height:28.70mm

Splitter height:18.70mm

It is for OE Compressor housing

7+7FORWARD

It is for OE compressor housing

Tapered tip Angle: 30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
