1. MODEL:TD08H forward

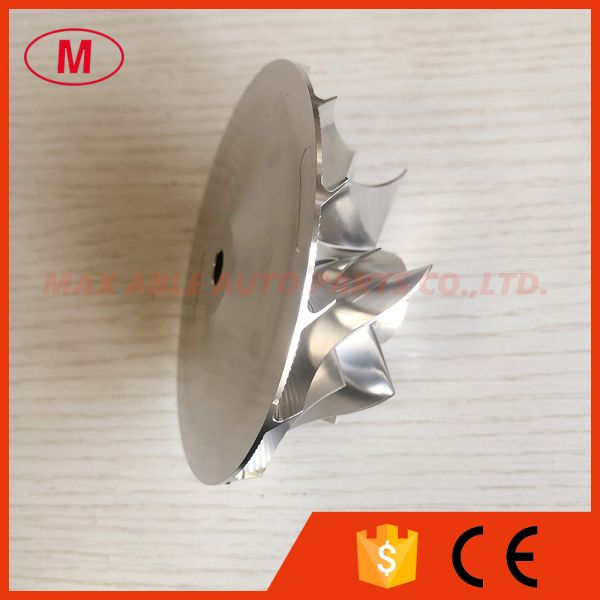

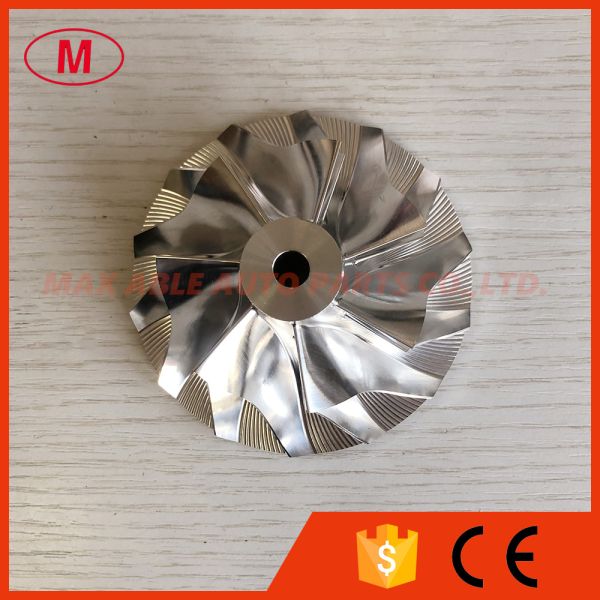

2.TD08H forward 49188-45120 63.30/92.00mm 7+7blades turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:22.57mm

Inducer:63.30mm

Exducer:92.00mm

Tip height:5.95mm

Superback:2.95mm

Overall height:42.20mm

bore size :7.95mm

Trailing Angle:45

Cutback:1.0

SP height angle:0.00

Blade height :32.36mm

Splitter height:20.20mm

7+7 BLADES.

Tapered tip angle: 0 degree

It is for OE compressor housing

forward rotation

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
