1. MODEL:TD05H 16G small forward

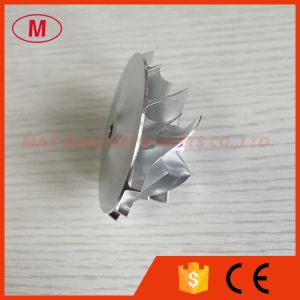

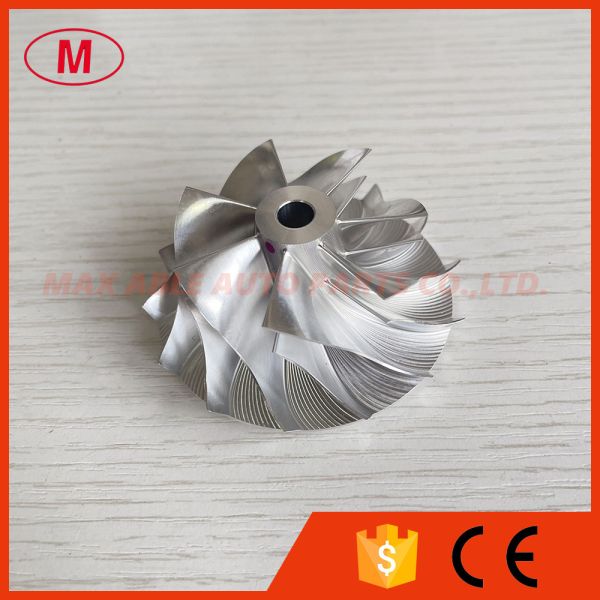

2.TD05H 16G small 46.48/60.00mm 7+7 blades 49178-43300 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-02001, 49178-01460, 49178-04340, 49178-04400, 49178-04500, 49178-04510, 49178-05200,49178-06200, 49178-06290, 49178-06300, 49178-06310, 49178-06380, 49178-06390

3.Size:

Nose diameter:14.35mm

Inducer:46.48mm

Exducer:60.00mm

Tapered tip exducer:64.60mm

Tip height:4.99mm

Superback:2.80mm

Overall height:27.61mm

bore size :6.50mm

bore type:through

Trailing angle:65 degree

Cutback:0.00mm

Blades height:22.93mm

Splitter height:15.60mm

Sp height angle:-5.40

7+7 Blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the billet wheels have been balanced.
